SIngle Implant - Immediate Placement, 8-year follow up

profile_image
HAPPYTOGETHER
Views : 27/ Oct, 13, 2025
<CJ SBN> old female had mobility and pain when chewing in the lower molar

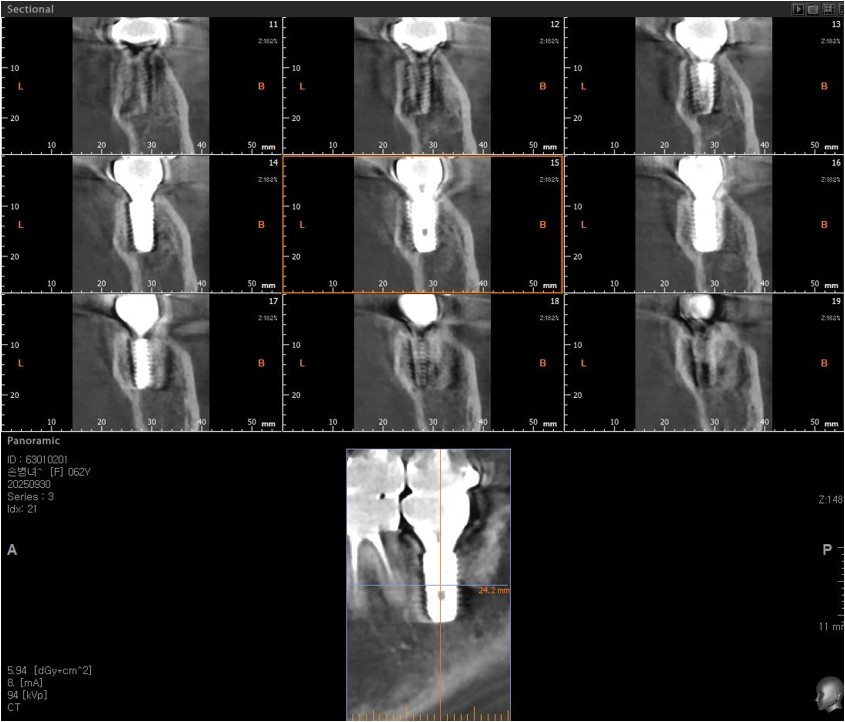

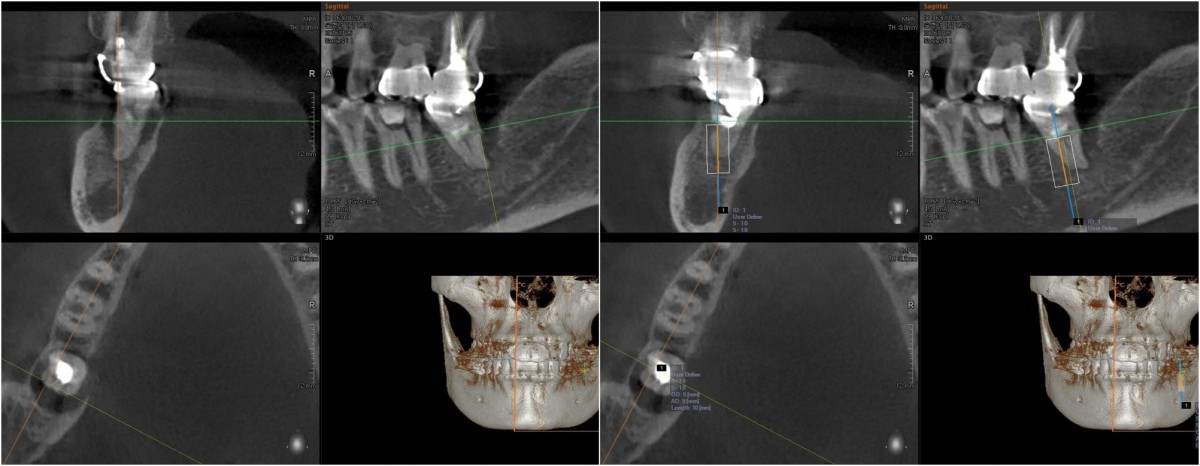

Intraoral photo. fold-crownef tooth is scheduled to be pulled out and implamt installation.▲Intraoral photo. fold-crownef tooth is scheduled to be pulled out and implamt installation.Simulation on the CT image▲Simulation on the CT imagetooth extraction, immediate placement, An attempt was made to implant a 4.5 mm diameter implant, but initial fixation was not good, so it was replaced with a 5 mm diameter implant.▲tooth extraction, immediate placement, An attempt was made to implant a 4.5 mm diameter implant, but initial fixation was not good, so it was replaced with a 5 mm diameter implant.The extraction area was filled with bovine bone to a fairly solid level.▲The extraction area was filled with bovine bone to a fairly solid level.A collagen membrane was placed over the GBR area and sutured.▲A collagen membrane was placed over the GBR area and sutured.Post-op Panoramic view▲Post-op Panoramic viewintraorall photo. 2.5 months after the surgery.▲intraorall photo. 2.5 months after the surgery.restoration - custom abutment and zirconia crown.▲restoration - custom abutment and zirconia crown.a couple of month later and a year later▲a couple of month later and a year laterCBCT view. 8 years after occlusal loading.▲CBCT view. 8 years after occlusal loading.
