In the anterior maxilla, implant-supported fixed partial denture.
HAPPYTOGETHER
Views : 2,255/ Jan, 19, 2023
Views : 2,255/ Jan, 19, 2023
<GCpbc> A 58-year-old male is a patient undergoing implant installation in various parts. The old Br of the anterior maxilla has fallen
off and it is no longer possible to maintain it even temporarily, so a
treatment plan for the anterior teeth was made.
▲anterior view

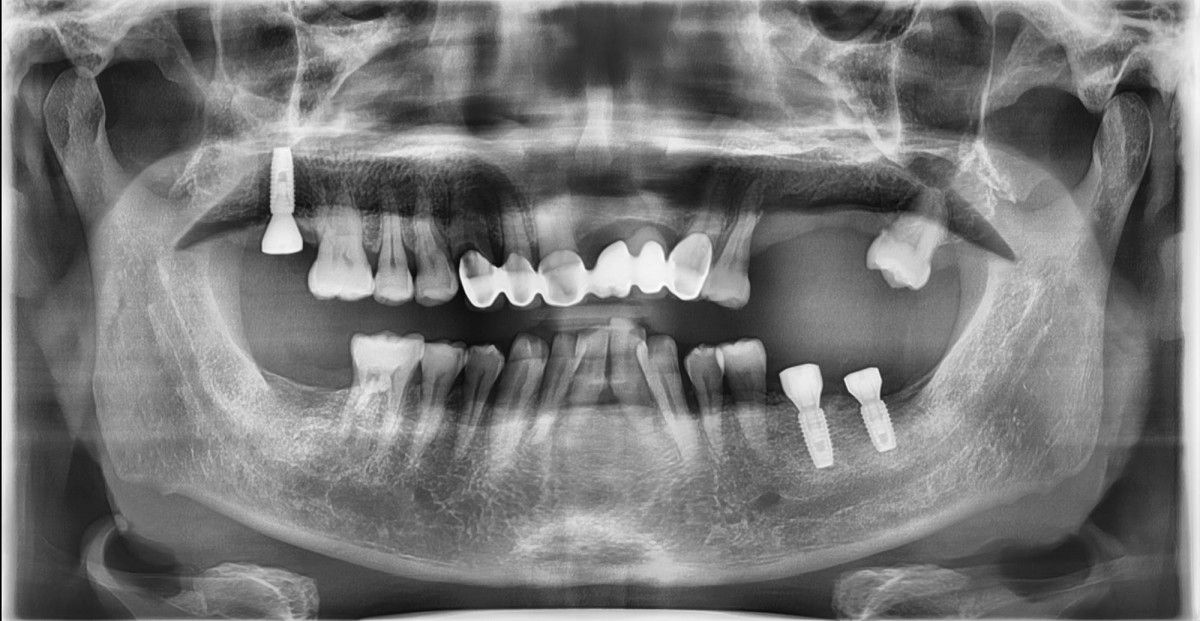

▲panoramic radiograph.
▲The old fixed partial denture was exfoliated.

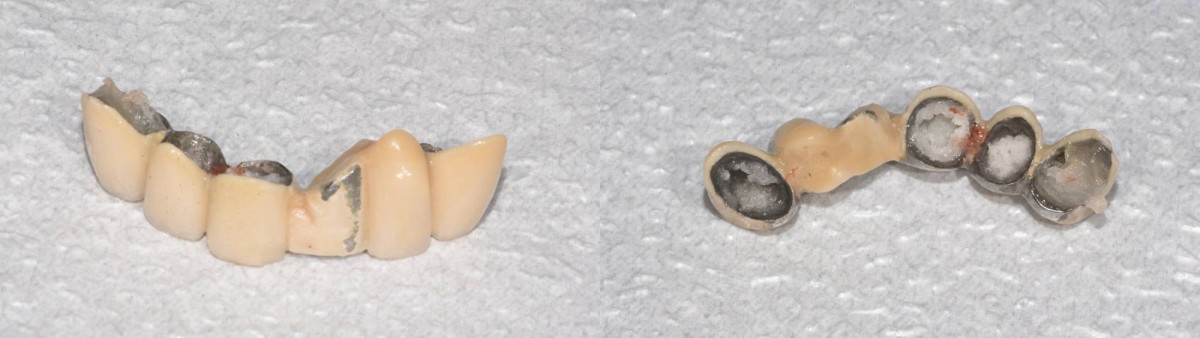

▲exfoliated prosthesis.
▲It was checked that the relationship between upper and lower anterior teeth when occluded. For normal shape and occlusion, treatment of not only the maxillary anterior teeth but also the mandibular anterior teeth seems to be necessary.
▲After teeth extraction, implants were placed. Depending on the state of the implant, the condition of the surrounding alveolar bone, and the degree of initial fixation, HA was connected to the canine and lateral incisor, and the cover-screw was connected to the implant in the central incisor.
▲right canine area - Arum Dentistry 4.5*11.5, right central incisor - Arum Dentistry 3.8*10, lleft ateral incisor - DIO 3.3*11.5.
▲suture.
▲Panoramic radiograph after implant placement.

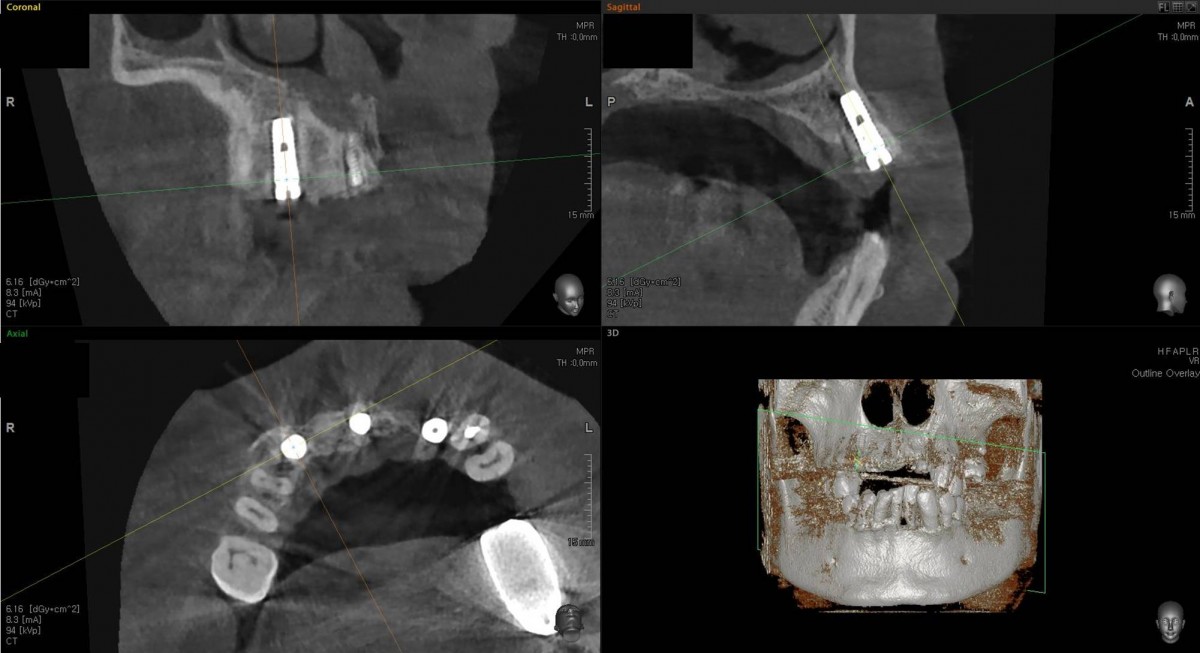

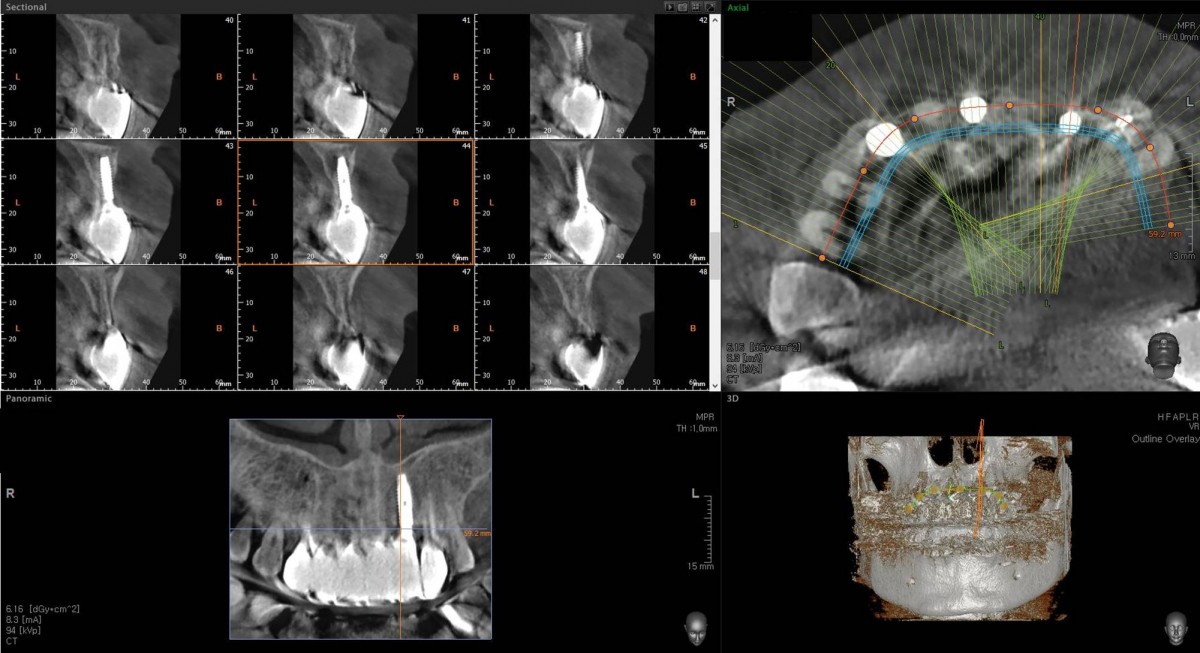

▲CBCT - canine zone

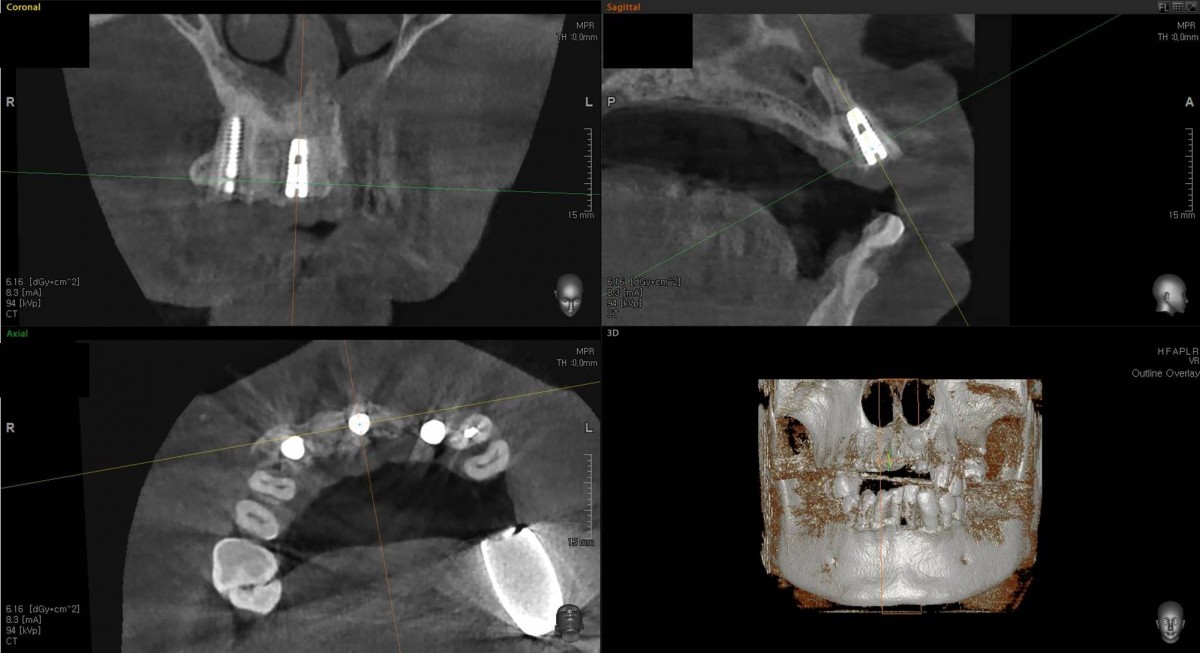

▲Central incisor zone

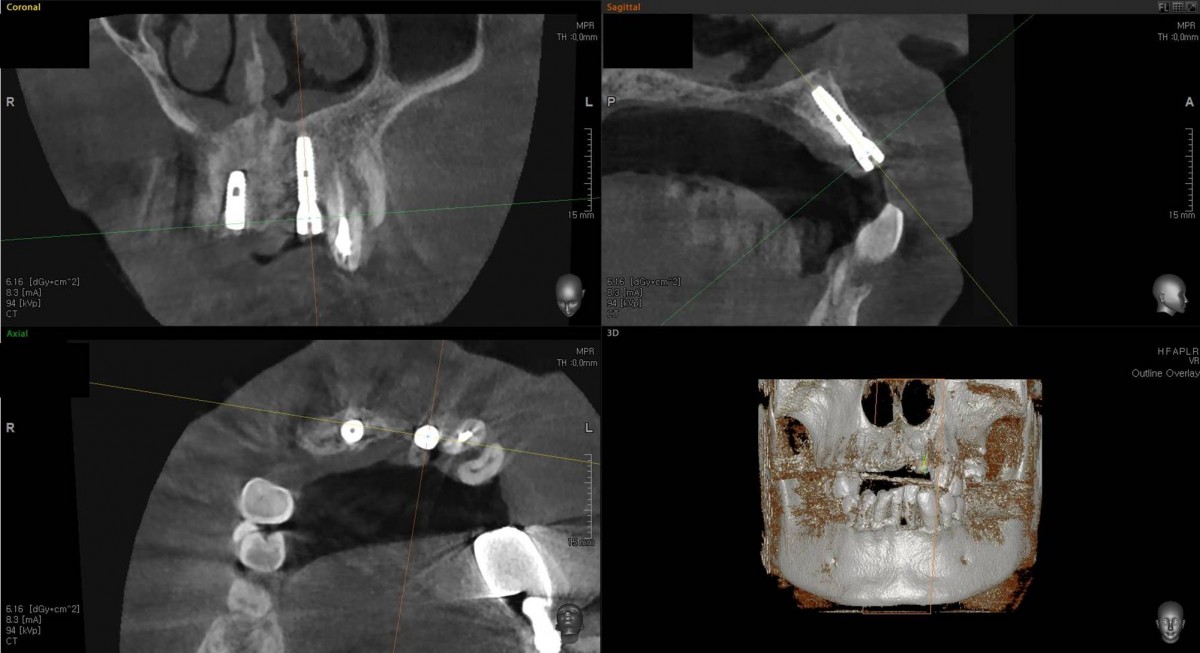

▲Lateral incisor zone.
▲1 week after implant surgery
▲On the day of stitch removal (2weeks after implant surgery), intraoral scanning was performed to fabricate a temporary restoration

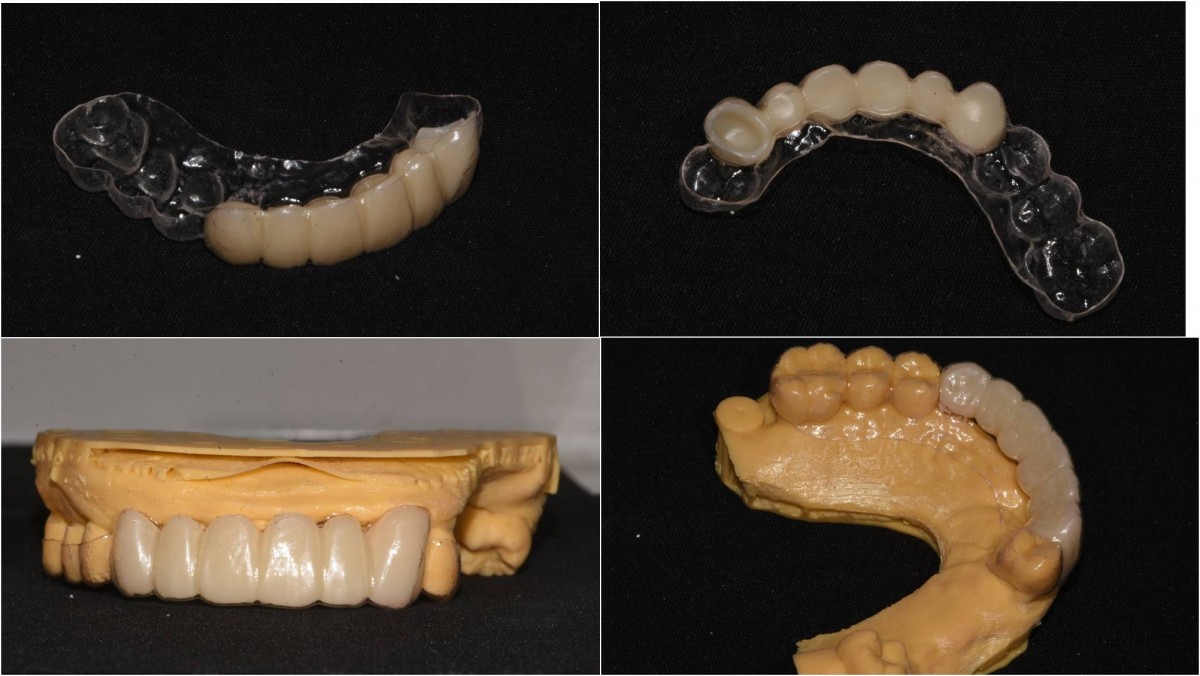

▲Instead of a flipper, suck-down shell with resin pontic.

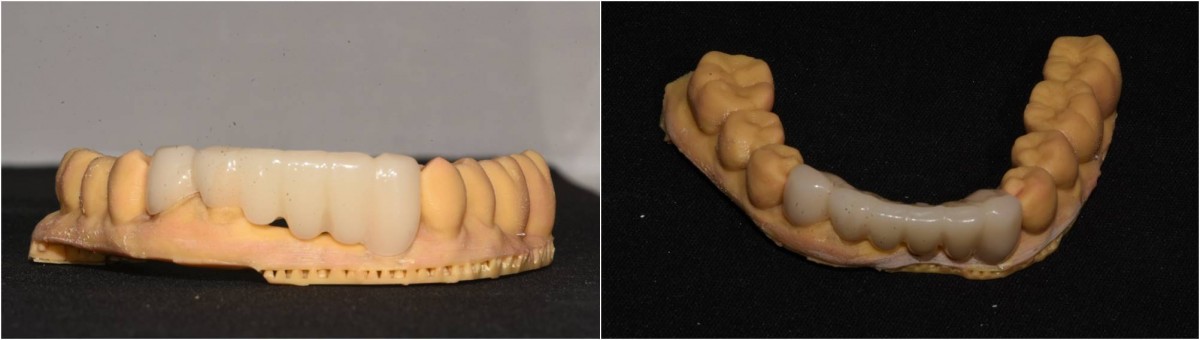

▲lower temfrary resin bridge.
▲3 weeks after implant surgery. The provisional restoration was delivered.
▲4 months after implant placement.
▲5 months after implant surgery on the day of 2nd surgery.
▲2nd surgery was performed.
▲Intraoral photo in the day of impression taking , 6 months after implant placement.

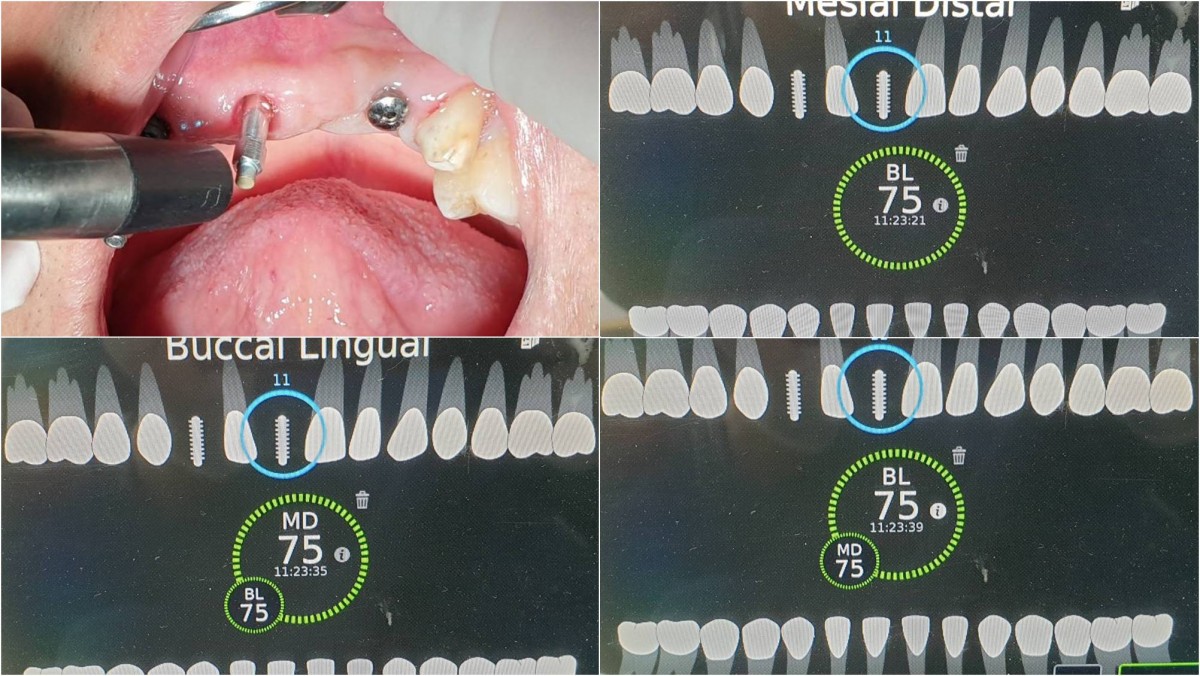

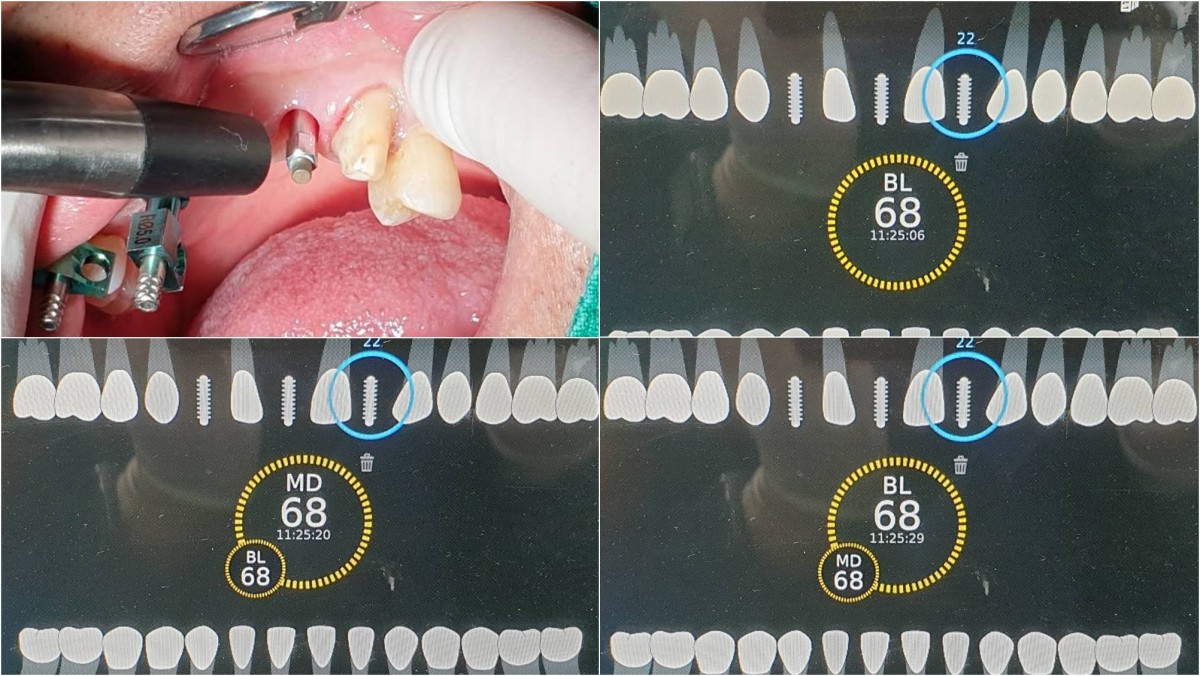

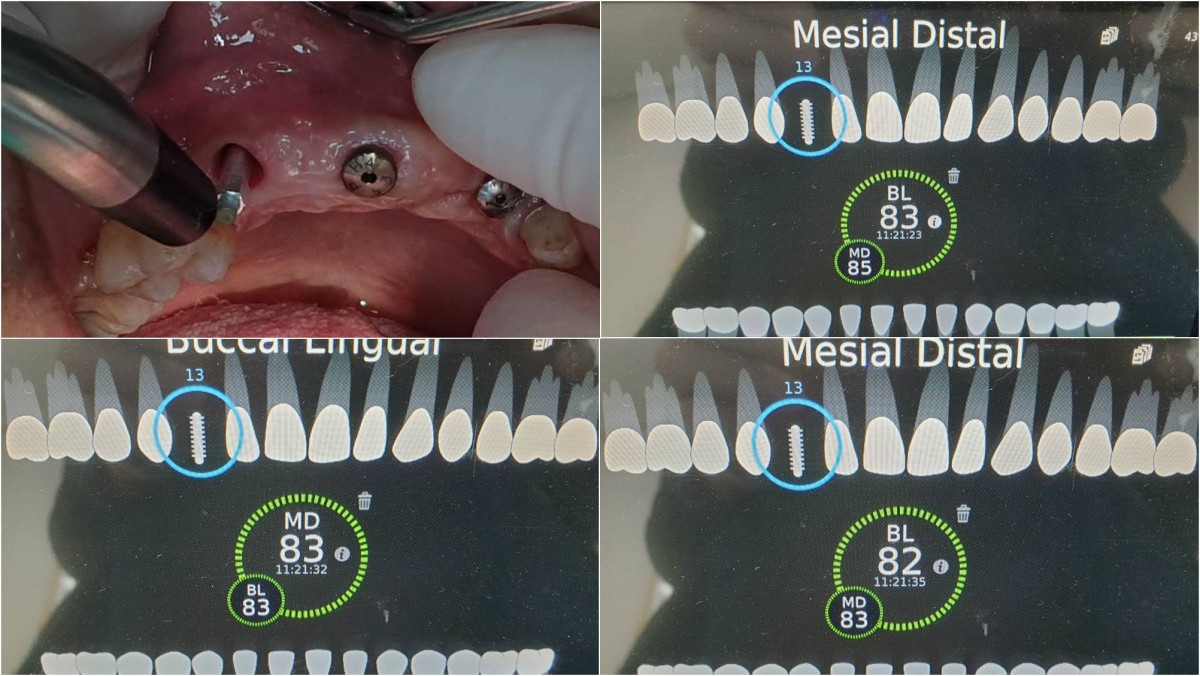

▲The ISQ values were checked on the second surgery day.

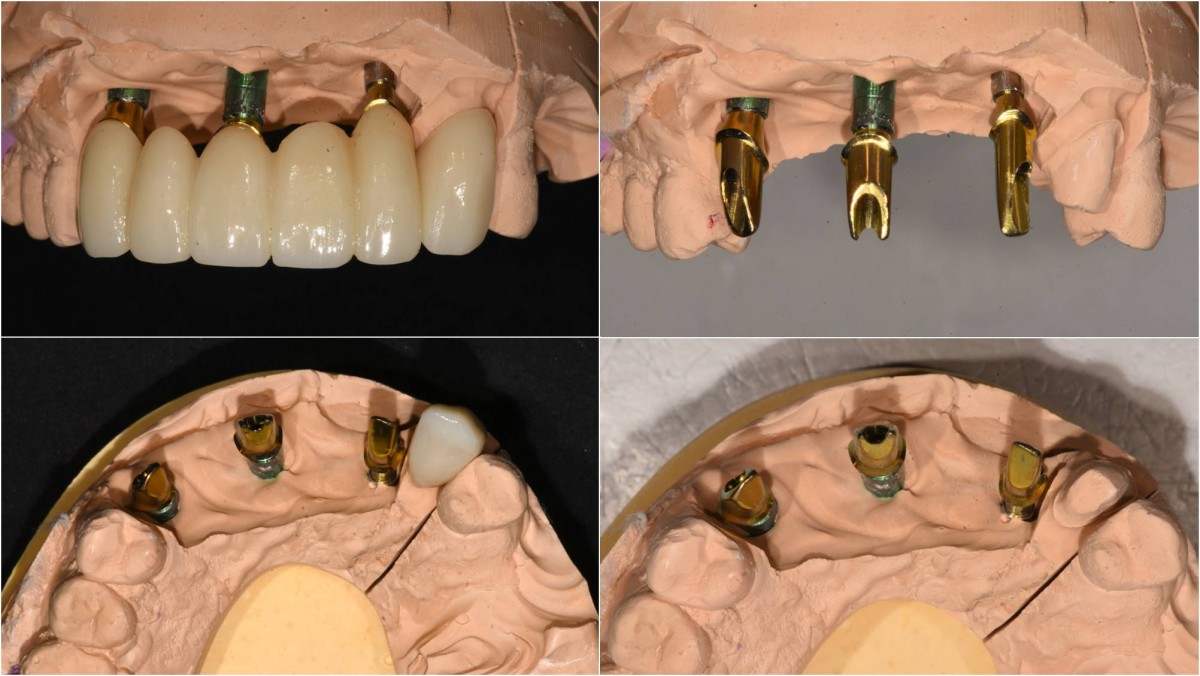

▲Custom abutment and zirconia Br, and single crown.
▲Lower anterior prosthesis.
▲Intraoral photo before prosthesis delivery.
▲Custom abutments were connected. Seating jig. If necessary, the abutment can be conveniently connected by using a seating jig.
▲Screw hole filling
▲Implant-supported fixed partial denture and single zirconia crown (lsft canine)
▲Photos after upper and lower prosthesis installation
▲Panoramic radiograph after upper and lower prostnesis icementation.

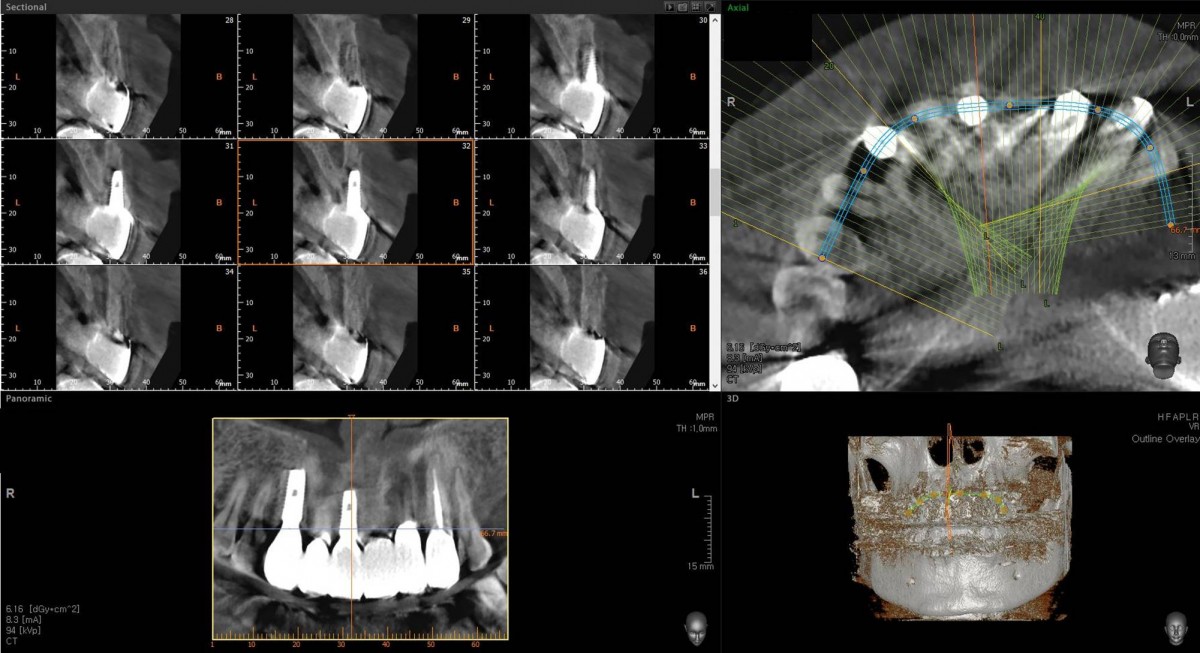

▲CBCT
